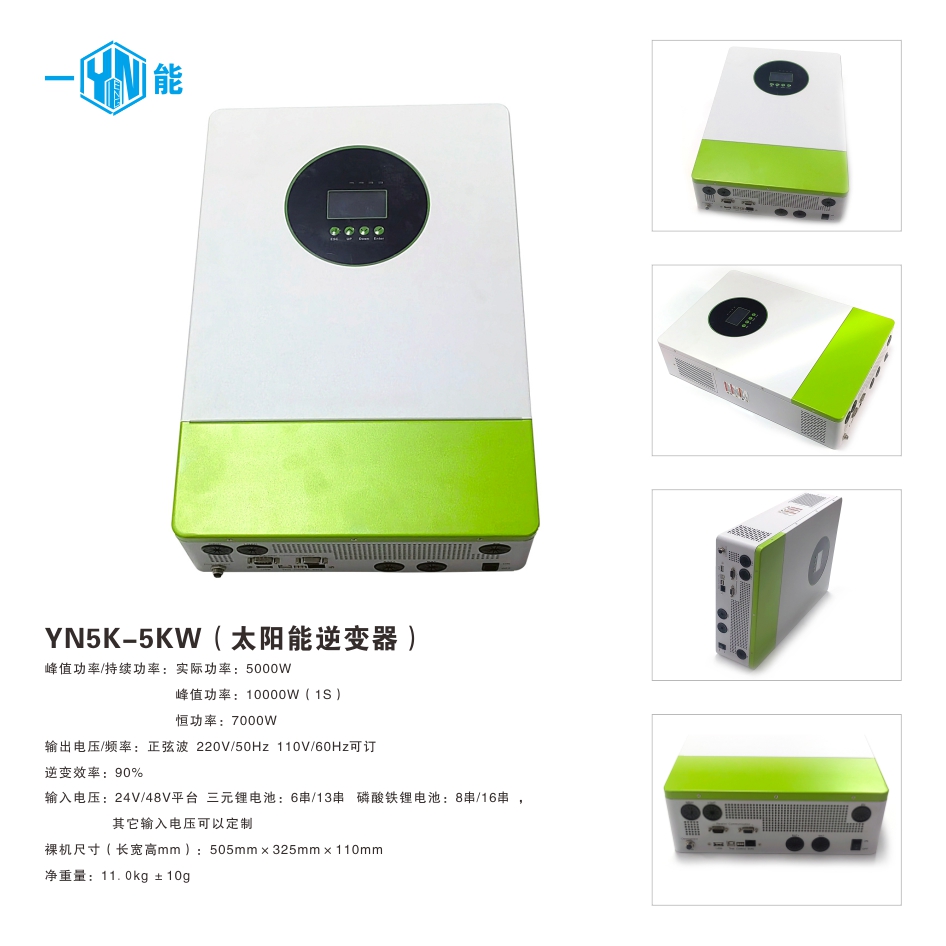

YN-5000W太阳能逆控一体机
YN-5KW(太阳能逆变器)持续功率:5000W
峰值功率:10000W(1S)恒功率:7000W
输出电压/频率:正弦波 220V/50Hz ;110V/60Hz可订逆变效率:90%
输入电压:24V/48V平台;三元锂电池:6串/13串;磷酸铁锂电池:8串/16串，
其它输入电压可以定制
裸机尺寸(长宽高mm):505mmx325mmx110mm;净重量:11.0kg±10g
YN-5KW Solar Inverter
Continuous Power / Peak Power: Rated Power: 5000W
Peak Power: 10000W (1 second) | Constant Power: 7000W
Output: Pure Sine Wave, 220V/50Hz; 110V/60Hz available on request Inverter Efficiency: 90%
Input Voltage Platform: 24V / 48V Battery Configuration: Ternary Lithium Battery: 6S /13S LiFePO4 Battery: 8S /16S
Other input voltages can be customized.
Bare Unit Dimensions (L×W×H, mm): 505mm × 325mm × 110mm
Net Weight: 11.0kg ±10g
